Home > Printer & Fax>Epson>EPSON LQ-310

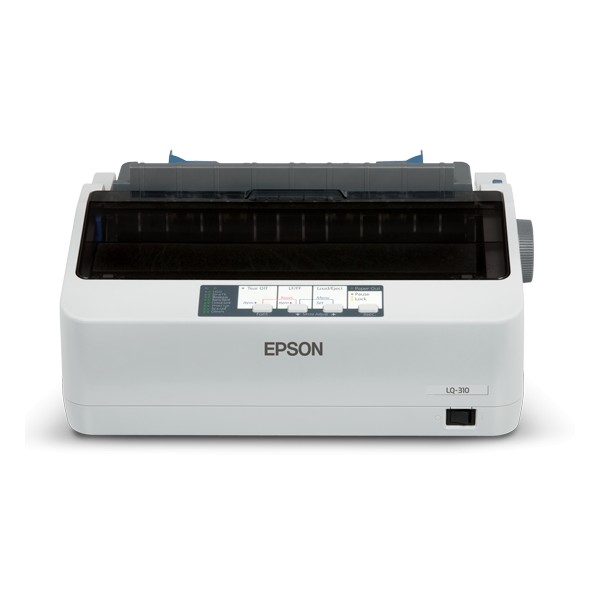

EPSON LQ-310 View full size

EPSON LQ-310

The Epson LQ-310 features a 128KB input data buffer memory that is double that of its predecessor. This enables it to achieve high printing speeds of up to 416 characters per second at 12 CPI – or almost 40% faster than the model it replaces.

More details

LQ-310

RM 659.00

By buying this product you can collect up to 219 loyalty points. Your cart will total 219 points that can be converted into a voucher of RM 4.38.


MODEL NUMBERLQ-310
Printing Technology
Print MethodImpact dot matrix
Number of Pins in Head24 pins
Print DirectionBi-direction with logic seeking
Control CodeESC/P2 and IBM PPDS emulation
Print Speed
High Speed Draft10/12 cpi347 / 416 cps
Draft10/12/15 cpi260 / 312 / 390 cps
Draft Condensed17/20 cpi222 / 260 cps
LQ10/12/15 cpi86 / 103 / 129 cps
LQ Condensed17/20 cpi147 / 172 cps
Print Characteristics
Character SetsItalic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap FontsEpson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational
Barcode FontsEAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Printable Columns
Pitch10/12/15/17/20 cpi80 / 96 / 120 / 137 / 160 cpl
Paper Handling
Paper Path
Tractor
Rear in, Top out
Manual Insertion
Rear in, Top out
Paper SizeLengthWidthThickness
Cut Sheet (Single Sheet)
100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.065 - 0.14mm (0.0025 - 0.0055")
Cut Sheet (Multi Part)
100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.12 - 0.32mm (0.0047 - 0.0126")
Envelope (No.6)
92mm (3.6")165mm (6.5")0.16 - 0.52mm (0.0063 - 0.0205")
Envelope (No.10)
105mm (4.1")241mm (9.5")0.16 - 0.52mm (0.0063 - 0.0205")
Continuous Paper (Single Sheet an Multi part)
101.6 - 558.8mm (4.0 - 22.0")101.6 - 254.0mm (4.0 - 10.0")0.065 - 0.32mm (0.0025 - 0.0126")
Roll Paper
NA216mm (8.5")0.07 - 0.09mm (0.0028 - 0.0035")
Paper Feeding
Standard
Friction, Push Tractor
Optional
Roll Paper Holder
CopiesOriginal + 3 copies
Line Spacing4.23mm (1/6") or programmable in increments of 0.118mm (1/216")
Input Data Buffer128KB
Interface
StandardBi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial
Ribbon Cartridge
StandardFabric Ribbon Cartridge (Black)
Ribbon Life
Approx. 2.5 million characters (Draft 10cpi, 48 dots/character)
Acoustic NoiseApprox. 53dB(A) (ISO 7779 pattern)
Reliability
Mean Print Volume Between Failure (MVBF)Approx. 20 million lines (Except print head)
Mean Time Between Failure (MTBF)Approx. 10,000 POH (25% Duty)
Print Head LifeApprox. 400 million strokes/wire
Control Panel4 switches and 5 LEDs
Environmental Conditions (Operating)
Temperature5 ~ 35°C
Humidty10 ~ 80% RH
Electrical Specification
Rated VoltageAC 120V / AC 220 - 240V
Rated Frequency50Hz - 60Hz
Power Consumption
Operating
Approx. 22W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant)
Sleep Mode
Approx. 1.0W (120V) / 1.3W (230V)
Auto Off Mode
Approx. 0.5W
Power Off
0W
Printer Driver / Utility
Operating SystemMicrosoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Utility
Epson Status Monitor 3
Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Epson Printer Setting
Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Dimensions and Weight
MODEL NUMBERLQ-310
Printing Technology
Print MethodImpact dot matrix
Number of Pins in Head24 pins
Print DirectionBi-direction with logic seeking
Control CodeESC/P2 and IBM PPDS emulation
Print Speed
High Speed Draft10/12 cpi347 / 416 cps
Draft10/12/15 cpi260 / 312 / 390 cps
Draft Condensed17/20 cpi222 / 260 cps
LQ10/12/15 cpi86 / 103 / 129 cps
LQ Condensed17/20 cpi147 / 172 cps
Print Characteristics
Character SetsItalic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
Bitmap FontsEpson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational
Barcode FontsEAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
Printable Columns
Pitch10/12/15/17/20 cpi80 / 96 / 120 / 137 / 160 cpl
Paper Handling
Paper Path
Tractor
Rear in, Top out
Manual Insertion
Rear in, Top out
Paper SizeLengthWidthThickness
Cut Sheet (Single Sheet)
100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.065 - 0.14mm (0.0025 - 0.0055")
Cut Sheet (Multi Part)
100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.12 - 0.32mm (0.0047 - 0.0126")
Envelope (No.6)
92mm (3.6")165mm (6.5")0.16 - 0.52mm (0.0063 - 0.0205")
Envelope (No.10)
105mm (4.1")241mm (9.5")0.16 - 0.52mm (0.0063 - 0.0205")
Continuous Paper (Single Sheet an Multi part)
101.6 - 558.8mm (4.0 - 22.0")101.6 - 254.0mm (4.0 - 10.0")0.065 - 0.32mm (0.0025 - 0.0126")
Roll Paper
NA216mm (8.5")0.07 - 0.09mm (0.0028 - 0.0035")
Paper Feeding
Standard
Friction, Push Tractor
Optional
Roll Paper Holder
CopiesOriginal + 3 copies
Line Spacing4.23mm (1/6") or programmable in increments of 0.118mm (1/216")
Input Data Buffer128KB
Interface
StandardBi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial
Ribbon Cartridge
StandardFabric Ribbon Cartridge (Black)
Ribbon Life
Approx. 2.5 million characters (Draft 10cpi, 48 dots/character)
Acoustic NoiseApprox. 53dB(A) (ISO 7779 pattern)
Reliability
Mean Print Volume Between Failure (MVBF)Approx. 20 million lines (Except print head)
Mean Time Between Failure (MTBF)Approx. 10,000 POH (25% Duty)
Print Head LifeApprox. 400 million strokes/wire
Control Panel4 switches and 5 LEDs
Environmental Conditions (Operating)
Temperature5 ~ 35°C
Humidty10 ~ 80% RH
Electrical Specification
Rated VoltageAC 120V / AC 220 - 240V
Rated Frequency50Hz - 60Hz
Power Consumption
Operating
Approx. 22W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant)
Sleep Mode
Approx. 1.0W (120V) / 1.3W (230V)
Auto Off Mode
Approx. 0.5W
Power Off
0W
Printer Driver / Utility
Operating SystemMicrosoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Utility
Epson Status Monitor 3
Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
Epson Printer Setting
Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®

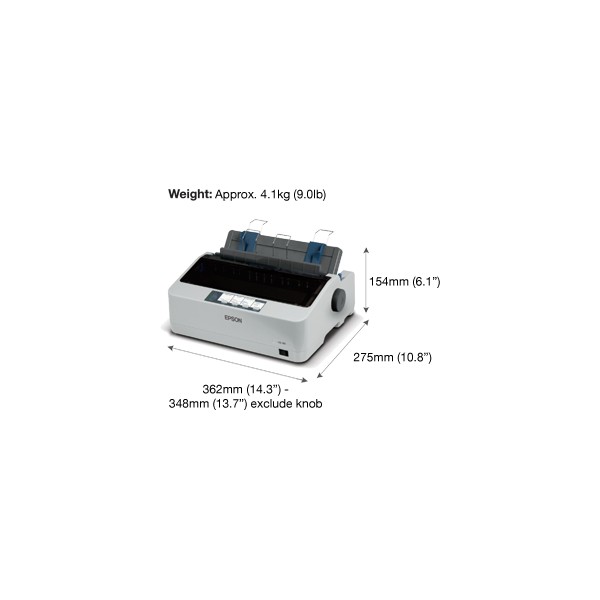

Dimensions and Weight
